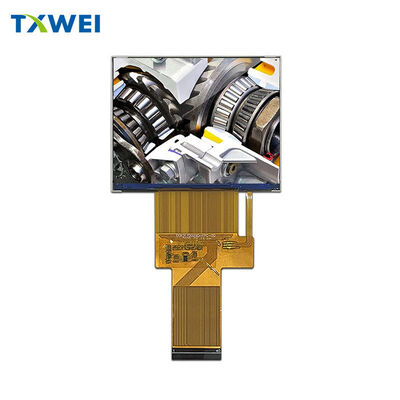

3.2-inch landscape 1024X768 ultra-high-definition full-color LCD screen with RGB/MIPI interface, optional endoscope display

Produits

AFFICHAGE À CRISTAUX LIQUIDES DE 3 POUCES

module d'affichage à cristaux liquides de 7 pouces

3.2-inch landscape 1024X768 ultra-high-definition full-color LCD screen with RGB/MIPI interface, optional endoscope display

Nombre De Pièces:	1
Prix:	Négociable
Période De Livraison:	7-16 jours
Méthode De Paiement:	LC, D/A, D/P, T/T
Capacité D'approvisionnement:	10000 pièces

Les informations détaillées

Description du produit

Les informations détaillées

Lieu d'origine

Shenzhen

Nom de marque

TXWEI

Certification

CE FCC ROHS

Numéro de modèle

XW317001B0

Documents

Nombre de pixels:

1024*768

Direction de visualisation:

Interface d'affichage:

BIT DE RVB 24

Luminosité:

600 lentes

Zone active:

64,51*48,38

Taille du contour:

69,41*55,49*2,25 mm

Température de fonctionnement:

-20 + 70 ℃

Température de stockage:

-30+80°C

Nombre de broches:

40PIN

Mettre en évidence:

3.2-inch TFT LCD display

full-color LCD screen with RGB interface

endoscope display with MIPI interface

Description du produit

3.17" IPS Micro Display · 1024×768 · -30 °C to +80 °C

Plug-in World-Ready Screen for Coffee Bots, Oil Rigs, Greenhouses & Wearables
(Stock in Shenzhen, ships today, lands anywhere in 48 h—no MOQ headache.)

1. SELL THE SIZZLE

Razor-sharp 283 PPI → icons look laser-printed at 30 cm.
2.25 mm thin → slides into chrome tubes, drone remotes, explosion-proof casings.
-30 °C start, +80 °C bake → passes Siberian winter & Saudi rooftop without heater or shade.
80 mA back-light → runs 3 days on a coin-cell; solar IoT loves it.
18-bit RGB → 60 fps video, zero bridge chip, saves 3 USD BOM.

Pain points - solutions

Overseas Pain	TXW317 Fix
Consumer TFT dies at -10 °C	Rated -20 °C op., -30 °C storage
SPI slows video	18-bit RGB port = smooth 60 fps
Thick panel needs deep bezel	2.25 mm, 18 g—thinner than a coin
LVDS bridge eats cost/power	Native RGB, 3.3 V, <240 mW total
Certifications missing	CE/FCC/RoHS ready, 30 min customs

USE-CASE CAROUSEL

Milan Smart Coffee Knob – latte art previews in 283 PPI glory.
Houston Oil Detector – 70 °C field, no sunshade, 24/7.
Nairobi Greenhouse – 45 °C, 90 % RH, pink LED glow—leaves still crisp on screen.
Toronto Drone Remote – -20 °C cold-start in 3 s, pilots keep gloves on.
São Paulo Taxi Meter – 20 k hr LED life, outlasts the cab, cuts warranty calls.
Tel-Aviv Wearable ECG – 3.3 V/80 mA, CR2032 lasts 72 h, no heater foil.
Sydney Vape Vender – portrait 1024×768 inside 12 mm chrome tube, retail wow.
Prague 3-D Printer – all-clock IPS, engineers peek from any angle while prints stack.

SPEC SHEET ( marketer-friendly )

Size / Resolution: 3.17" | 1024 × 768 RGB | 283 PPI
Active Area: 64.51 × 48.38 mm
Outline: 69.41 × 56.49 × 2.25 mm | 18 g
Interface: 18-bit RGB + DCLK + DE + HSYNC/VSYNC | 40-pin FPC 0.3 mm
Back-light: 12 white LEDs, 8.4-9.6 V, 80 mA, PWM dimmable, 20 k hr life
Optical: 500 nits, 800:1 CR, IPS 85/85/85/85, no grey inversion
Power: 3.3 V logic, <240 mW full white
Environmental: -20 °C to +70 °C op., -30 °C to +80 °C storage | 96 h damp-heat 60 °C/90 % RH | 10× thermal shock -20 ↔ +70 °C
Compliance: CE, FCC Part 15 B, RoHS 2.0, REACH 223 SVHC, halogen-free, conflict-minerals-free

Shenzhen Tianxianwei Technology Co., Ltd., established in 2014, is a national high-tech enterprise integrating R&D, design, production, and sales. Its main products include TFT LCD displays, touch displays, signal conversion boards, and LCD display solutions.
