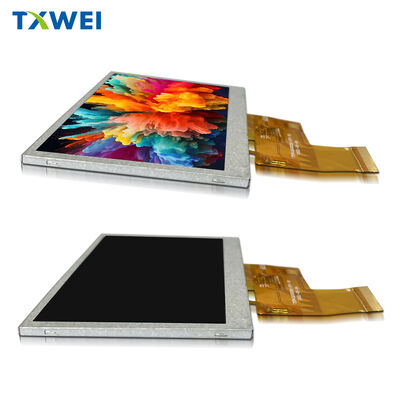

4.3 inch 800*480 high-definition IPS two wheeled vehicle instrument panel, medical LCD display panel, RGB interface, 1200 brightness

Produits

AFFICHAGE À CRISTAUX LIQUIDES DE 3 POUCES

module d'affichage à cristaux liquides de 7 pouces

4.3 inch 800*480 high-definition IPS two wheeled vehicle instrument panel, medical LCD display panel, RGB interface, 1200 brightness

Nombre De Pièces:	1
Prix:	Négociable
Période De Livraison:	7-16 jours
Méthode De Paiement:	LC, D/A, D/P, T/T
Capacité D'approvisionnement:	10000 pièces

Les informations détaillées

Description du produit

Les informations détaillées

Lieu d'origine

barrière de protection des bords

Nom de marque

TXWEI

Certification

CE FCC ROHS

Numéro de modèle

TXW430047B0

Documents

Nombre de pixels:

Le nombre de points de vente est déterminé en fonction de la valeur de l'offre.

Direction de visualisation:

Interface d'affichage:

BIT DE RVB 24

Luminosité:

1200 nits

Zone active:

95.04 ((H) * 53.856 ((V)

Taille du contour:

105.5*67.2*2.9 mm

Température de fonctionnement:

-30+80°C

Température de stockage:

-30+85°C

Nombre de broches:

40PIN

IC du pilote LCM:

ST72568

Mettre en évidence:

4.3 inch IPS LCD display panel

two wheeled vehicle instrument LCD

medical LCD display with RGB interface

Description du produit

TXW430047B0

4.3" Ultra-Bright Wide-Temperature Display

1200 nits | -30°C~+80°C | IPS Full-View | 800×480 | 16:9

▎Short

◆ Sunlight-readable. Freeze-proof. Industrial-grade.

The TXW430047B0 delivers 1200 nits brightness in a compact 4.3-inch 16:9 format. Built for outdoor devices, electric vehicle dashboards, and extreme environments where ordinary consumer screens simply give up and fail.

~

▎▎Medium

◈ Brightness That Beats the Sun

1200 nits. Not 500. Not 800. Twelve hundred.

Direct sunlight. Harsh glare. Reflections off glass and metal. Cut through them all.

◦ Outdoor kiosks that face south. ◦ Motorcycle dashboards at high noon. ◦ Field equipment under open sky.

Readable. Always. Every angle. Every hour.

◈ Temperature Extremes, Conquered

-30°C cold start. Arctic deployments. Frozen storage monitors. Winter mornings after overnight parking.

+80°C continuous operation. Desert heat. Engine compartments. Industrial ovens baking nearby.

◦ No thermal shutdown. ◦ No contrast collapse. ◦ No performance drift. ◦ Just stable pixels where others fail.

◈ Wide View, Right View

IPS technology. 178° viewing freedom.

Portrait. Landscape. Tilted. Above. Below. Side angle.

◦ Colors stay true. ◦ Contrast holds steady. ◦ No gray inversion. ◦ No color washout.

The image you designed is the image they see. Every position. Every time.

~ ~

▎▎▎Long

◇ The Display Core

800 × 480 resolution spreads across 95.04 × 53.856 millimeters of active display area.

RGB stripe pixel arrangement. 0.1188 by 0.1122 millimeter pitch.

◦ Sharp enough for crisp data readouts. ◦ Smooth enough for graphical interfaces. ◦ Balanced for mixed-content industrial screens.

16:9 aspect ratio. Native widescreen. No letterboxing. No scaling artifacts. Video content fills the frame. UI elements distribute naturally.

ST72568 driver IC. Mature platform. Stable supply. Proven in industrial applications across global fleets.

RGB 24-bit parallel interface. 40-pin direct connection. Clean signal path to your application processor.

◦ No bridge chips adding cost. ◦ No protocol translation adding latency. ◦ No compatibility layers adding failure points.

~

◦ Mechanical envelope: 105.5 × 67.2 × 2.9 millimeters.

Compact for the brightness class. 2.9 millimeters thin. Fits slender enclosures. Leaves room for thermal management. Allows design flexibility in tight spaces.

◇ The Backlight System

16-LED array. Engineered for efficiency and longevity.

28 to 30 volt drive architecture. 40 milliampere operating current.

◦ 50,000 hours to half brightness at rated current. ◦ PWM dimming support built-in. ◦ Adapt to ambient light conditions. ◦ Extend service life through intelligent drive. ◦ Reduce power draw during night operation.

The light engine matches the display mission. Bright when needed. Efficient when possible. Reliable always.

◇ Environmental Hardiness

Operating temperature spans sixty degrees Celsius. From thirty below freezing to eighty above boiling water.

◦ Cold-start reliability for arctic logistics. ◦ Continuous stability for desert deployments. ◦ Thermal shock survival for equipment moved between environments.

Storage tolerance extends even wider. Negative thirty through positive eighty-five degrees. Shipping containers crossing climates. Warehouse storage without climate control. Seasonal inventory. Arrives working. Stays working.

Normally black display mode. Dark backgrounds by default.

◦ Power saved for battery-operated devices. ◦ Perceived contrast improved in variable lighting. ◦ Eye strain reduced for operators in low-light conditions.

Essential for dashboard applications. Critical for cockpit and control room environments.

◇ Manufacturing Confidence

Designed and manufactured by TXW Display. Shenzhen headquarters.

◦ In-house engineering team. ◦ Direct production line control. ◦ Vertical integration from design to shipment.

Not a trading company. Not a broker adding markup without value. Direct manufacturer relationship.

99.7% outgoing quality rate. Measured. Sustained. Not a peak. A standard.

◦ Incoming material inspection. ◦ In-process optical testing. ◦ Final functional verification. ◦ Traceability records for every unit.

Technical support that understands MIPI timing parameters. Thermal management strategies. Mechanical integration challenges. After-sales service that resolves issues. Not deflects. Not delays.

◇ Application Landscapes

◊ Outdoor High-Brightness Equipment

Digital signage facing streets and parking lots. Payment terminals under open sky. Ticket vending machines at transit stations. Public information displays in plazas and squares.

1200 nits ensures readability under direct sun. Wide temperature handling manages seasonal swings from summer heat to winter freeze. Industrial reliability architecture reduces service calls and truck rolls. Your installation stays visible. Stays operational. Stays out of the maintenance queue.

~

◊ Electric Vehicle Dashboards

Motorcycles. Scooters. Light electric vehicles. Micro-mobility fleet management.

Compact 4.3-inch format fits handlebar instrument clusters and dashboard cutouts. Sunlight readability essential for daytime riding safety. Wide viewing angle accommodates rider positioning and helmet angles. Cold-start reliability for winter morning commutes. Vibration resistance for road shock.

The display matches the vehicle mission. Urban mobility. Rural transport. Fleet efficiency. Rider safety.

~

◊ Industrial and Medical Control

Factory floor HMI panels. Portable test and measurement equipment. Medical devices deployed in non-climate-controlled environments.

-30°C startup capability for cold chain logistics monitoring. +80°C continuous operation for sterilization equipment zones and heat-intensive processes. Touch-ready surface compatibility for gloved operation. Long-term availability for product lifecycle planning.

Equipment that moves. Equipment that stays. Equipment that must work first time, every time.

~

◊ Freezing and Refrigeration Monitoring

Cold storage facilities. Blast freezers. Refrigerated transport trucks and containers. Temperature-sensitive supply chain nodes.

The display works where operators wear insulated gloves. Where breath condenses on surfaces. Where consumer screens ice over and fail. Specified for the environment it monitors. Not adapted. Not compromised. Purpose-built.

~

◊ Access Control and Security

Outdoor entry panels at commercial and residential buildings. Gate operators for parking and facilities. Perimeter security stations. Visitor management systems.

24/7 visibility requirement. All-weather reliability. Vandal-resistant mounting compatibility. Wide temperature for unconditioned installation locations. Sunlight readability for daytime access. Nighttime dimming for light pollution control.

Security that depends on the interface. Interface that depends on the display.

~ ~ ~
