5.0-inch horizontal screen 800*480 resolution RGB interface intelligent magic mirror cabinet LCD display screen medical equipment display

Produits

AFFICHAGE À CRISTAUX LIQUIDES DE 3 POUCES

module d'affichage à cristaux liquides de 7 pouces

5.0-inch horizontal screen 800*480 resolution RGB interface intelligent magic mirror cabinet LCD display screen medical equipment display

Nombre De Pièces:	1
Prix:	Négociable
Période De Livraison:	7-16 jours
Méthode De Paiement:	LC, D/A, D/P, T/T
Capacité D'approvisionnement:	10000 pièces

Les informations détaillées

Description du produit

Les informations détaillées

Lieu d'origine

barrière de protection des bords

Nom de marque

TXWEI

Certification

CE FCC ROHS

Numéro de modèle

TXW500248B1

Documents

Nombre de pixels:

800*480

Direction de visualisation:

Interface d'affichage:

BIT DE RVB 24

Luminosité:

600 lentes

Zone active:

108 fois 64.8

Taille du contour:

120.7*75.8*2.9 mm

Température de fonctionnement:

-30+85°C

Température de stockage:

-30+85°C

Nombre de broches:

40PIN

Mettre en évidence:

5.0-inch TFT LCD display

RGB interface LCD screen

medical equipment LCD display

Description du produit

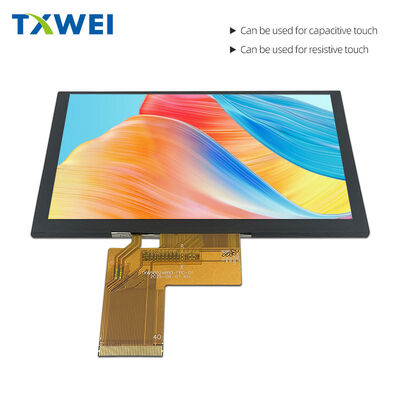

TXW500248B1

5" Industrial IPS Display

800×480 | 600 nits | RGB 24-bit | -30°C~+85°C

▎Short

◆ Smart mirror ready. Medical certified. Marine tough.

The TXW500248B1 delivers 600 nits industrial brightness in a versatile 5-inch format. Wide temperature range. Proven RGB interface. Built for smart mirrors, medical devices, marine navigation, and monitors that demand reliability.

~

▎▎Medium

◈ Versatile 5-Inch Format

800 × 480 resolution. 108 × 64.8 mm active area.

◦ 16:9 widescreen. Video-native. UI-efficient. ◦ 5-inch diagonal. Visible without dominating. ◦ Perfect for mirror integrations. Panel meters. Portable devices.

◈ Brightness for Real Spaces

600 nits. Indoor excellence. Semi-outdoor capable.

◦ Smart bathroom mirrors with ambient lighting. ◦ Medical monitors in bright clinical environments. ◦ Marine dashboards under open cabin conditions. ◦ Industrial monitors in well-lit factory floors.

◈ Temperature Extremes, Solved

-30°C to +85°C operating. -30°C to +85°C storage.

◦ Steamy bathroom environments. ◦ Cold storage medical logistics. ◦ Hot engine room marine installations. ◦ Uncontrolled industrial deployments.

Same range for operation and storage. Simplified supply chain. Reduced handling constraints.

◈ Proven Interface Architecture

RGB 24-bit parallel. 40-pin standard.

◦ Direct processor connection. No protocol bridges. ◦ Mature ecosystem. Extensive reference designs. ◦ ST7265 driver. Stable. Available. Supported.

▎SpecificationsDisplay Core
◦ Model: TXW500248B1
◦ Size: 5 inch
◦ Resolution: 800 × 480
◦ Aspect Ratio: 16:9
◦ Active Area: 108 × 64.8 mm
◦ Pixel Arrangement: RGB stripe
◦ Display Type: Normally black
◦ Viewing Technology: IPS 178°
◦ Brightness: 600 nits
◦ Driver IC: ST7265
◦ Interface: RGB 24-bit, 40 PIN
Mechanical
◦ Outline: 120.7 × 75.8 × 2.9 mm
◦ Thickness: 2.9 mm
Environmental
◦ Operating Temperature: -30°C ~ +85°C
◦ Storage Temperature: -30°C ~ +85°C
▎▎▎Long◇ The Display Core800 × 480 pixels across 108 × 64.8 millimeters.
RGB stripe pixel arrangement. Balanced density for graphics and text. Readable at typical viewing distances. Efficient for processor bandwidth.
IPS technology. 178° viewing freedom. Above. Below. Left. Right. Colors hold. Contrast stays. Essential for mirror applications with off-angle viewing. Critical for medical displays with multiple observers.
Normally black mode. Dark backgrounds. Enhanced perceived contrast. Power efficiency. Reduced eye strain in dim environments.
◇ The Backlight System600 nits output. LED array architecture.
Balanced for visibility and thermal management. 2.9 mm profile accommodates heat dissipation. PWM dimming support. Adapt to ambient conditions. Extend operational life.
Not sun-facing outdoor rated. Powerful for demanding indoor. Capable for shaded outdoor and semi-enclosed spaces.
◇ The Mechanical Design120.7 × 75.8 × 2.9 mm. Standard 5-inch industrial footprint.
Established ecosystem. Compatible enclosures. Proven integration paths.
2.9 mm thickness. Slim for the brightness class. Enables modern industrial design. Accommodates thermal solutions. Fits tight mechanical envelopes.
◇ Environmental Mastery-30°C to +85°C. Widest range in 5-inch class.
Cold-start reliability. No pre-conditioning. Immediate operation in frozen environments. Cold chain medical logistics. Arctic marine deployments.
High-temperature stability. No thermal shutdown. Continuous operation at limits. Engine room heat. Industrial process environments. Desert installations.
Storage matches operating range. Eliminates special handling. Reduces warehousing constraints. Simplifies global logistics.
◇ Application Landscapes◊ Smart Mirror Cabinets
Bathroom vanity mirrors. Wardrobe mirror systems. Home automation panels.
5-inch format fits mirror frame integrations. 600 nits visible through ambient bathroom lighting. Wide temperature handles steam and heating variations. IPS viewing accommodates user positioning at angles. RGB interface enables cost-effective processor selection.
◦ Reflection meets information. Technology disappears into daily routine.
~
◊ Medical Devices
Patient monitors. Diagnostic displays. Portable medical equipment. Point-of-care instruments.
600 nits for bright clinical visibility. Wide temperature for sterilization and cold storage cycles. Stable supply for medical certification timelines. RGB interface simplifies regulatory compliance.
◦ Patient care depends on clear information. Clear information depends on reliable display.
~
◊ Monitoring Equipment
Industrial process monitors. Security system displays. Test equipment interfaces. Data logging terminals.
Versatile 5-inch size for panel mounting. 600 nits for factory floor lighting. Wide temperature for uncontrolled environments. Proven RGB interface for legacy and modern system integration.
◦ Continuous monitoring. Reliable visibility. Operational confidence.
~
◊ Marine Navigation
Chart plotters. Instrument clusters. Bridge displays. Vessel monitoring.
Wide temperature spans engine room heat and bridge chill. 600 nits for cabin and shaded deck visibility. Marine environment resilience. Standard interface for navigation system compatibility.
◦ Safe passage depends on information. Information depends on display that survives the sea.

Les étiquettes:

Produits

Nombre De Pièces:	1
Prix:	Négociable
Période De Livraison:	7-16 jours
Méthode De Paiement:	LC, D/A, D/P, T/T
Capacité D'approvisionnement:	10000 pièces

Les informations détaillées

Description du produit

Les informations détaillées

Lieu d'origine

barrière de protection des bords

Nom de marque

TXWEI

Certification

CE FCC ROHS

Numéro de modèle

TXW500248B1

Documents

TXW500248B0_SPEC.pdf

Nombre de pixels:

800*480

Direction de visualisation:

IPS

Interface d'affichage:

BIT DE RVB 24

Luminosité:

600 lentes

Zone active:

108 fois 64.8

Taille du contour:

120.7*75.8*2.9 mm

Température de fonctionnement:

-30+85°C

Température de stockage:

-30+85°C

Nombre de broches:

40PIN

Quantité de commande min:

Prix:

Négociable

Délai de livraison:

7-16 jours

Conditions de paiement:

LC, D/A, D/P, T/T

Capacité d'approvisionnement:

10000 pièces

Mettre en évidence

5.0-inch TFT LCD display

RGB interface LCD screen

medical equipment LCD display

Description du produit

TXW500248B1

5" Industrial IPS Display

800×480 | 600 nits | RGB 24-bit | -30°C~+85°C

▎Short

◆ Smart mirror ready. Medical certified. Marine tough.

The TXW500248B1 delivers 600 nits industrial brightness in a versatile 5-inch format. Wide temperature range. Proven RGB interface. Built for smart mirrors, medical devices, marine navigation, and monitors that demand reliability.

~

▎▎Medium

◈ Versatile 5-Inch Format

800 × 480 resolution. 108 × 64.8 mm active area.

◦ 16:9 widescreen. Video-native. UI-efficient. ◦ 5-inch diagonal. Visible without dominating. ◦ Perfect for mirror integrations. Panel meters. Portable devices.

◈ Brightness for Real Spaces

600 nits. Indoor excellence. Semi-outdoor capable.

◦ Smart bathroom mirrors with ambient lighting. ◦ Medical monitors in bright clinical environments. ◦ Marine dashboards under open cabin conditions. ◦ Industrial monitors in well-lit factory floors.

◈ Temperature Extremes, Solved

-30°C to +85°C operating. -30°C to +85°C storage.

◦ Steamy bathroom environments. ◦ Cold storage medical logistics. ◦ Hot engine room marine installations. ◦ Uncontrolled industrial deployments.

Same range for operation and storage. Simplified supply chain. Reduced handling constraints.

◈ Proven Interface Architecture

RGB 24-bit parallel. 40-pin standard.

◦ Direct processor connection. No protocol bridges. ◦ Mature ecosystem. Extensive reference designs. ◦ ST7265 driver. Stable. Available. Supported.

▎SpecificationsDisplay Core
◦ Model: TXW500248B1
◦ Size: 5 inch
◦ Resolution: 800 × 480
◦ Aspect Ratio: 16:9
◦ Active Area: 108 × 64.8 mm
◦ Pixel Arrangement: RGB stripe
◦ Display Type: Normally black
◦ Viewing Technology: IPS 178°
◦ Brightness: 600 nits
◦ Driver IC: ST7265
◦ Interface: RGB 24-bit, 40 PIN
Mechanical
◦ Outline: 120.7 × 75.8 × 2.9 mm
◦ Thickness: 2.9 mm
Environmental
◦ Operating Temperature: -30°C ~ +85°C
◦ Storage Temperature: -30°C ~ +85°C
▎▎▎Long◇ The Display Core800 × 480 pixels across 108 × 64.8 millimeters.
RGB stripe pixel arrangement. Balanced density for graphics and text. Readable at typical viewing distances. Efficient for processor bandwidth.
IPS technology. 178° viewing freedom. Above. Below. Left. Right. Colors hold. Contrast stays. Essential for mirror applications with off-angle viewing. Critical for medical displays with multiple observers.
Normally black mode. Dark backgrounds. Enhanced perceived contrast. Power efficiency. Reduced eye strain in dim environments.
◇ The Backlight System600 nits output. LED array architecture.
Balanced for visibility and thermal management. 2.9 mm profile accommodates heat dissipation. PWM dimming support. Adapt to ambient conditions. Extend operational life.
Not sun-facing outdoor rated. Powerful for demanding indoor. Capable for shaded outdoor and semi-enclosed spaces.
◇ The Mechanical Design120.7 × 75.8 × 2.9 mm. Standard 5-inch industrial footprint.
Established ecosystem. Compatible enclosures. Proven integration paths.
2.9 mm thickness. Slim for the brightness class. Enables modern industrial design. Accommodates thermal solutions. Fits tight mechanical envelopes.
◇ Environmental Mastery-30°C to +85°C. Widest range in 5-inch class.
Cold-start reliability. No pre-conditioning. Immediate operation in frozen environments. Cold chain medical logistics. Arctic marine deployments.
High-temperature stability. No thermal shutdown. Continuous operation at limits. Engine room heat. Industrial process environments. Desert installations.
Storage matches operating range. Eliminates special handling. Reduces warehousing constraints. Simplifies global logistics.
◇ Application Landscapes◊ Smart Mirror Cabinets
Bathroom vanity mirrors. Wardrobe mirror systems. Home automation panels.
5-inch format fits mirror frame integrations. 600 nits visible through ambient bathroom lighting. Wide temperature handles steam and heating variations. IPS viewing accommodates user positioning at angles. RGB interface enables cost-effective processor selection.
◦ Reflection meets information. Technology disappears into daily routine.
~
◊ Medical Devices
Patient monitors. Diagnostic displays. Portable medical equipment. Point-of-care instruments.
600 nits for bright clinical visibility. Wide temperature for sterilization and cold storage cycles. Stable supply for medical certification timelines. RGB interface simplifies regulatory compliance.
◦ Patient care depends on clear information. Clear information depends on reliable display.
~
◊ Monitoring Equipment
Industrial process monitors. Security system displays. Test equipment interfaces. Data logging terminals.
Versatile 5-inch size for panel mounting. 600 nits for factory floor lighting. Wide temperature for uncontrolled environments. Proven RGB interface for legacy and modern system integration.
◦ Continuous monitoring. Reliable visibility. Operational confidence.
~
◊ Marine Navigation
Chart plotters. Instrument clusters. Bridge displays. Vessel monitoring.
Wide temperature spans engine room heat and bridge chill. 600 nits for cabin and shaded deck visibility. Marine environment resilience. Standard interface for navigation system compatibility.
◦ Safe passage depends on information. Information depends on display that survives the sea.
